3 Row Aluminum Radiator with Shroud Fan Relay I74044
3 Row Aluminum Radiator with Shroud Fan Relay I74044
Core Size: 34in W x 17.25in H x 1.73in T Overall Size: 40.5in W x 21.75in H
Inlet/Outlet Diameter:1.31in/1.56in

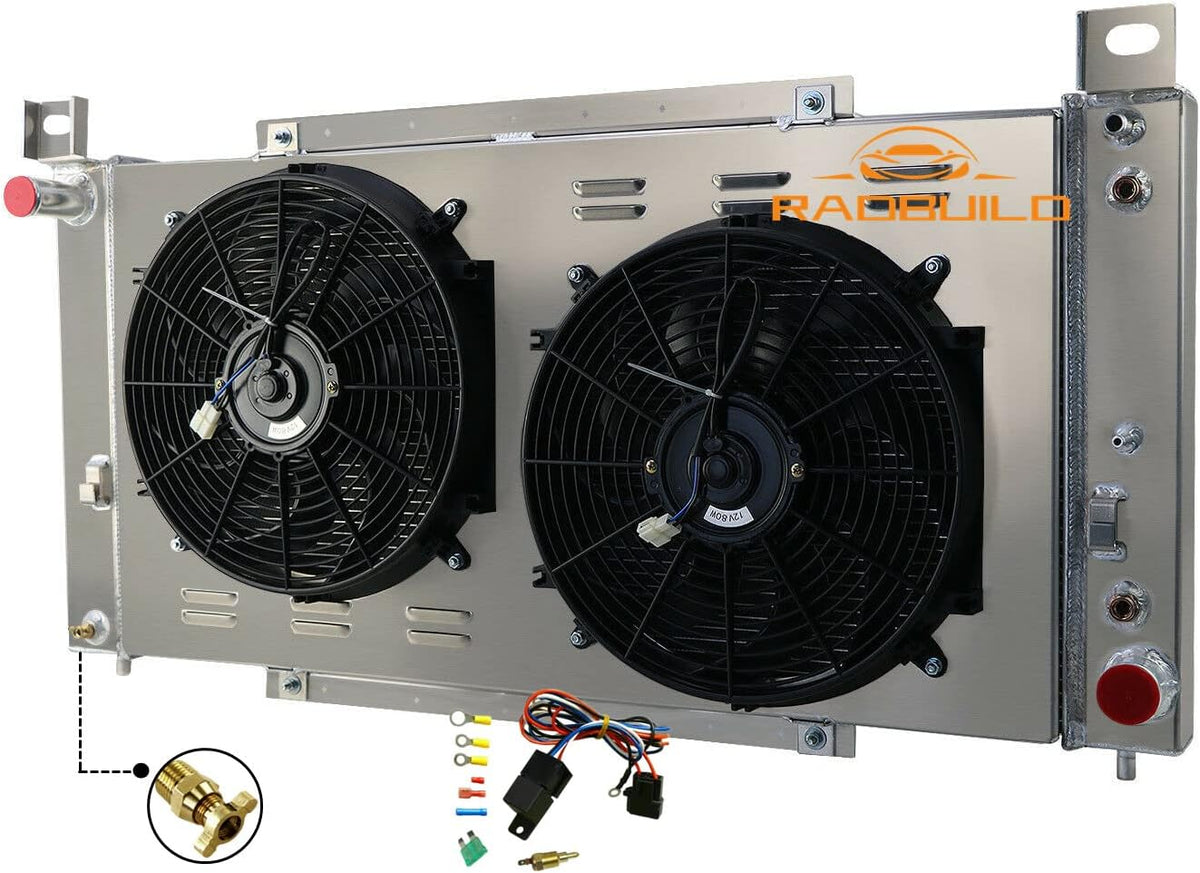

Package Include: Come with 1 x 3 Row Complete Radiator. 1x Aluminum Shroud.2x14”Fans.1x Thermostat Relay Kit.RadBuild 1 year warranty.
Built with full aluminum for maximum cooling efficiency to ensure durability in extreme condition.
The item will be shipped out from our USA warehouse,Fast fulfillment and delivery.
Fitment
For Chevy Silverado Suburban Tahoe Escalade 4.8 5.3 6.0 6.2 V8
For Chevy Avalanche 02-11/Silverado pickup 6.0 V8 99-11
For Chevy Suburban / Tahoe 4.8 / 5.3 6.0 V8 00-11
For Chevy GMC Yukon 4.8/5.3 V8 00-11/GMC pickup Sierra 6.0 V8 99-11
For Hummer H2 6.0 V8 03-09 & Cadillac Escalade 6.0 V8 02-11
Radiator Details
Row Count: 3 Row
Upper Inlet: 1.31in located on driver side
Lower Outlet: 1.56in located on passenger side
Surface Finish: Aircraft Grade Raw Aluminum
OEM style brass petcock drain
CNC machined filler neck and cap
Fans Size
Maximum Fan CFM: 2200±200
FAN DIAMETER X HEIGHT X THICKNESS:14.05' X 14.05' X 2.5'
Number of Blades: 8 blades (Plastic)
Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps
Thermostat Kit
* Activates by grounding electric fans at preset temperature.
* 180'F/165'F turn on/off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Part Number
Manufacturer Part Number：2370,CU2370,Q2370, DPI2370,RA20060, RA20111, RAD2370
